CI Items

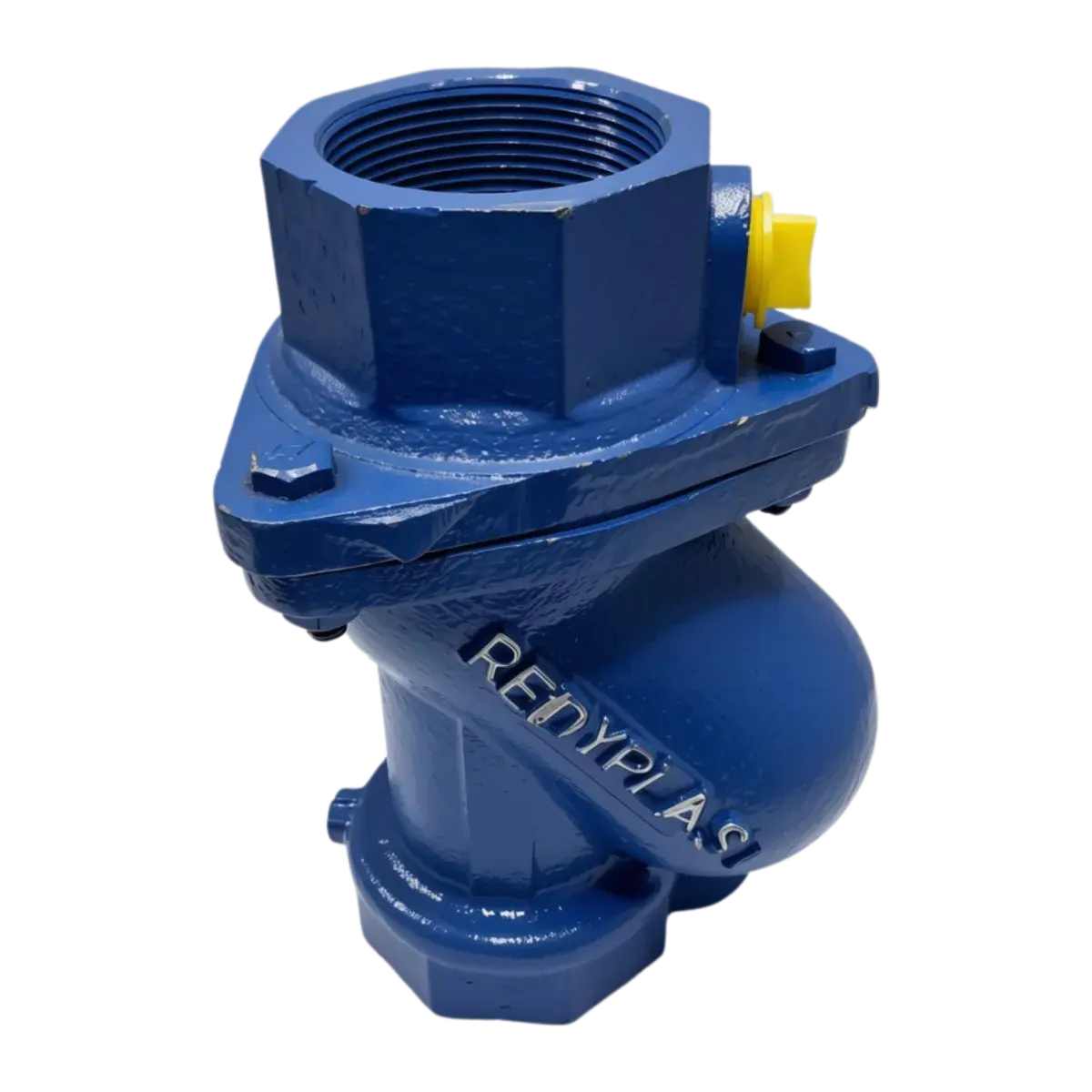

SOCKETED NRV BALL TYPE CI 3"

Cast iron ball-type non-return valve with socketed threaded connection

Socketed NRV Ball Type CI

4 variants · 3 on enquiry

Size

₹2,871 / piece

Boxed 4 to a box · ₹11,484 the box

MRP inclusive of tax · 18% GST

Currently out of stock. Message us on WhatsApp and we’ll let you know when it’s back.

Get a price on WhatsApp Request bulk quote

Trusted since 2007 — 1,500+ dealers across Telangana and Andhra Pradesh
Pay securely online — card, UPI or netbanking
WhatsApp support, Mon–Sat 10:00–20:00

Specifications

SKU: RDP-CI-BT-NRV-ST80
Model: RDP0223
Size: 3"
Length: 35 CM
Thickness: 12 mm
Colour: BLUE
Material: Cast Iron
Minimum order: 1 piece
Boxed: 4 pieces to a box
Weight: 6800 GRAM
Origin: Made in India

About this product

The SOCKETED NRV BALL TYPE CI 3" is a cast iron ball-type non-return valve designed for compatible irrigation and water-delivery pipe systems. Its socketed threaded connection provides a practical way to install the valve in suitable pipework. The ball-type mechanism helps prevent reverse flow when correctly installed in the appropriate flow direction.

Key features

Cast iron construction
Ball-type non-return mechanism
Socketed threaded connection
Designed for compatible irrigation and water-delivery pipework
Accessible for inspection and cleaning

Where it's used

Smaller submersible and openwell pump delivery lines
Threaded delivery runs where a flanged valve is not required
Replacement of compatible threaded check/non-return valves
Irrigation and water-delivery installations

Benefits

Ball-type mechanism provides automatic non-return action when correctly installed
No spring or diaphragm mechanism
Socketed threaded connection simplifies installation where compatible
Helps maintain the water column between pump operating cycles when correctly installed
Cast iron body provides a substantial valve construction
Can be opened, inspected and cleaned when servicing is required

Installation recommendations

1. Confirm the valve size and thread compatibility with the mating pipe or fitting. 2. Check the flow direction before installation; install the valve in the correct direction of flow. 3. Clean and inspect the threads and valve interior. 4. Apply a suitable thread sealant compatible with the system. 5. Start the threaded connection by hand to avoid cross-threading. 6. Tighten using a wrench on the valve body; do not apply excessive force to the adjoining pipe. 7. Keep the valve accessible for future inspection and cleaning. 8. After installation, check the joint and valve operation during initial commissioning.

Downloads

Reviews

No reviews yet

Be the first to review this product.

Reviews are checked by our team before they go live — yours could be the first one here.

From the knowledge centre

Every fitting between the pump and your first lateral

The parts that get left off an order and needed on day one. A checklist from the pump outlet to the field, with real prices and both tax rates.

Before you buy

What is a ball-type NRV?

A non-return valve that uses a ball-type internal mechanism to restrict reverse flow when correctly installed.

Which direction should the valve be installed?

Follow the marked or intended flow direction. Installing it in reverse can restrict the required flow.

Why is the line draining back after the pump stops?

Check the valve for incorrect installation, debris on the ball or seat, or damage to the internal sealing surfaces.

Does the valve require regular servicing?

Inspect it when symptoms such as reverse flow or poor retention of the water column occur. The ball and seat should be cleaned if contaminated with grit or debris.

Can it be installed underground?

Keep the valve accessible where practical so it can be inspected and serviced if required.

Is a pressure rating specified?

The allowable pressure depends on the complete installed system and its components
