Drip Irrigation

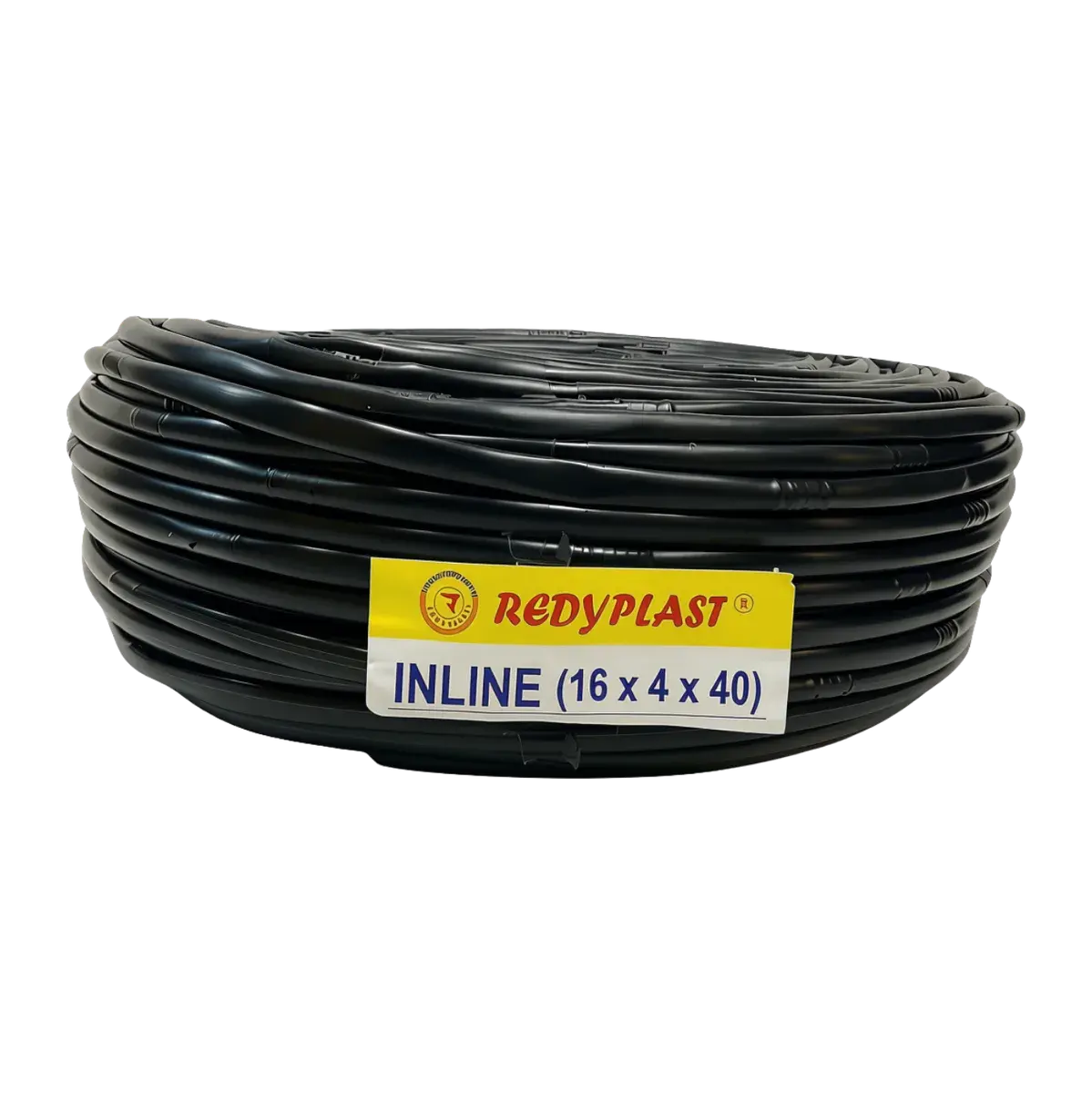

Inline Drip pipe Aquaflow series 16 MM

Inline drip lateral pipe with 1.2 MM wall thickness, 16 MM diameter,coil length 300 M. & 500 M.

Inline Drip Pipe Aquaflow Series

2 variants

₹2,689

MRP inclusive of tax · 5% GST

Delivery calculated at checkout from your PIN code.

In stock

pcs
Or ask about it on WhatsApp
  • Trusted since 2007 — 1,500+ dealers across Telangana and Andhra Pradesh
  • Pay securely online — card, UPI or netbanking
  • WhatsApp support, Mon–Sat 10:00–20:00

Specifications

SKU
RDP-AF-IL-16-300
Model
RDP1509
Size
16 MM
Length
300 Meters Approx
Wall thickness
1.2 mm
Emitter spacing
40 cm
Discharge rate
4 lph
Operating pressure
1 to 2 kg/sq cm
Colour
BLACK
Material
LLDPE
Minimum order
1 piece
Weight
9000 GRAM
Origin
Made in India

About this product

The Inline Drip pipe Aquaflow series 16 MM is an LLDPE inline drip lateral with a 1.2 MM wall thickness, 16 MM diameter and integrated emitters at 40 cm spacing. It is designed to deliver water at regular intervals along crop rows and is suitable for compatible drip irrigation systems. The approximately 300-meter coil provides a continuous lateral length for suitable field layouts.

Key features

  • Integrated inline drippers
  • LLDPE construction
  • 16 MM diameter
  • 1.2 MM wall thickness
  • 40 cm emitter spacing
  • 4 lph discharge
  • Designed for compatible drip irrigation systems

Where it's used

  • Row crops at regular spacing — cotton, chilli, tomato, brinjal, cabbage
  • Sugarcane and banana, including paired-row planting
  • Vegetable beds under shade net or polyhouse
  • Any field where plant-to-plant spacing is close to the 40 cm dripper pitch
  • Drip Irrigation systems on small and mid-size farms

Benefits

  • Controlled water delivery along crop rows
  • Integrated drippers require no field fitting
  • Consistent 40 cm emitter spacing
  • Long coil length can reduce the number of joins in suitable layouts
  • Suitable for fertigation with compatible water-soluble fertilisers

Installation recommendations

Lay the lateral along the crop row once the mainline and submain are charged and flushed. Connect to the submain with a grommet and take-off rather than cutting into the pipe. Leave the far end open and run the system for a few minutes so grit is carried out, then close it with an end cap. Hold the line between 1 - 2 kg/cm² neutral operating guidance based on the rated pressure.

Downloads

Reviews

No reviews yet

Be the first to review this product.

Reviews are checked by our team before they go live — yours could be the first one here.

From the knowledge centre

Drip for banana: sizes, grades and the two pitfalls

Which drip laterals suit a banana crop, why the heavy wall earns its keep over a year in the ground, and the two mistakes banana buyers repeat.

Before you buy

What is the Inline Drip pipe Aquaflow series 16 MM used for?

It is designed for drip irrigation applications where water needs to be delivered at regular intervals along crop rows.

What is the emitter spacing and dischage rate?

The emitter spacing is 40 cm and the specified discharge is 4 lph per emitter.

What is the recommended operating pressure?

recommended operating pressure of 1 to 2 kg/sq cm.

What filtration should be used with this drip pipe?

Filtration should be selected according to the water source, water quality and emitter requirements. Proper filtration helps reduce the risk of emitter blockage.

Can fertiliser be applied through the drip system?

Yes, compatible water-soluble fertilisers can be applied through a properly designed fertigation system. The fertiliser should be completely dissolved and suitable for drip irrigation.

How should the drip lateral be flushed?

Open the lateral end and flush the line until the discharged water is reasonably clear. Flush periodically according to water quality and system conditions

How should it be stored after the season?

Drain and flush the lateral, handle it carefully during removal, and store it in a clean, dry location away from conditions that could cause physical damage.

What should I do if some emitters discharge less water than others?

Check filtration, flushing, pressure, lateral condition and possible emitter blockage. Also check whether the lateral length and system layout are appropriate for the operating conditions.

Are your prices MRP or dealer rate?

Every price on this site is MRP, inclusive of tax. It is the same for everyone — there is no separate dealer login or hidden rate. For bulk quantities, send a bulk enquiry and we will quote on volume.

Why is GST 5% on some products and 18% on others?

Micro-irrigation equipment — drip and sprinkler systems — attracts 5% GST under Indian tax rules. General plastic pipe and fittings attract 18%. The rate that applies is shown on each product page rather than assumed.
